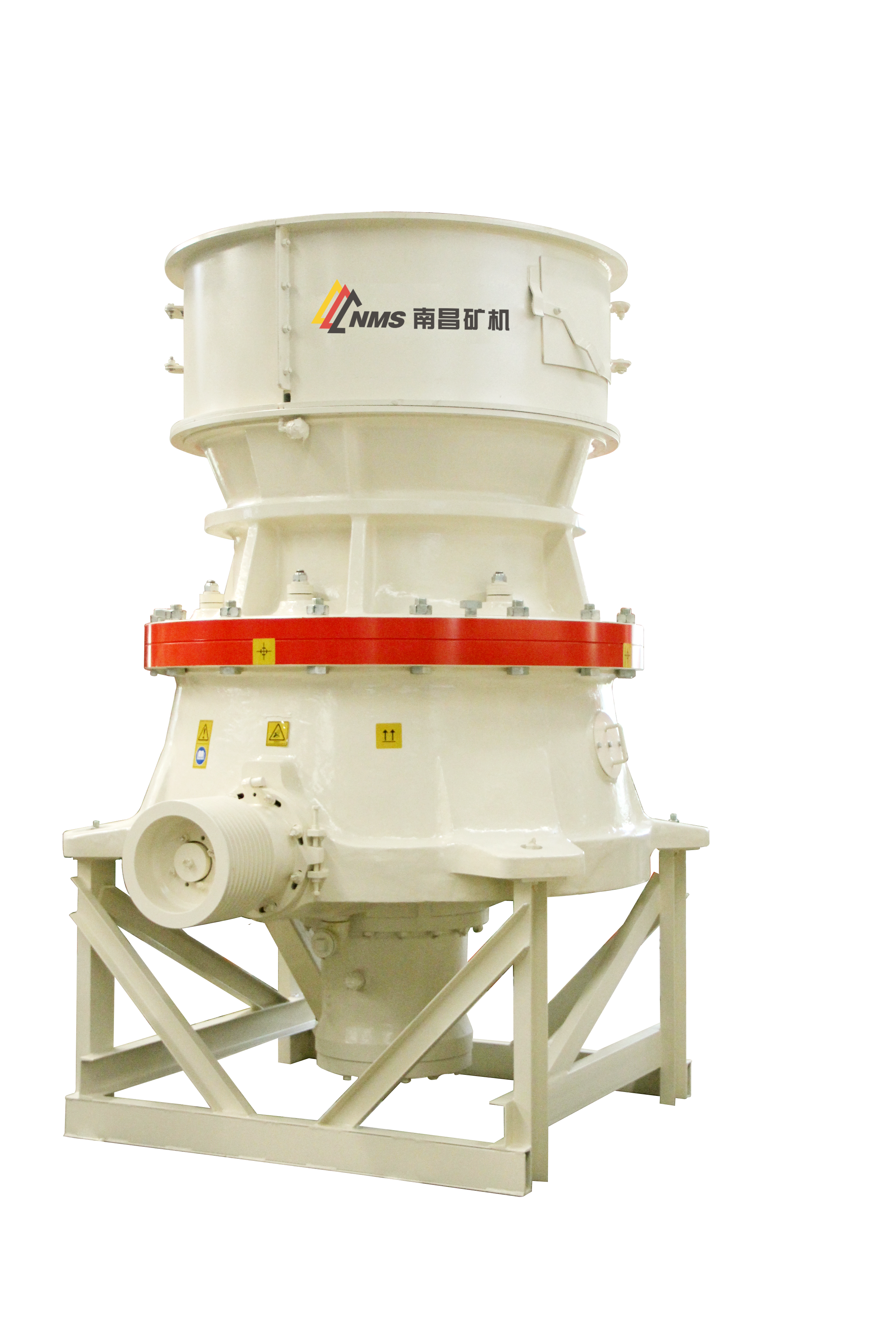

NMS CC400 Single Cylinder Hydraulic Cone Crusher, 7 Kinds of Chambers for Free Change!

2021.05.31

NMS CC400 single cylinder hydraulic cone crusher is designed with 7 kinds of chambers (EC-EF) and 3 sorts of eccentric copper sleeves. The maximum feeding size of EC chamber is 315mm and the maximum processing capacity is 662t/h. The equipment can be widely used in secondary and tertiary crushing of metal mines, metallurgy, chemical industry and building materials.

Excellent processing capacity!

Compared with other single cylinder cone crushers, its processing capacity is lager if the power is the same.

Constant chamber and choke feeding crushing ensure better shape.

Overload protection, tramp iron protection, liner wearing automatic compensation and choking feeding make the efficiency of cone crusher up to maximum, simultaneously, the service life of wear-resistant parts can be predicted.

Quality guaranteed!

Modular design, all parts can be overhauled from the top.

The main parts are processed by CNC machine. The main shaft is made of alloy steel forgings, and top and bottom shells are integrally cast to ensure the structural strength. ZGMn18Cr2 is the standard material for moving and fixed cone liners.

Numerous honors!

It has been awarded the 3rd prize of China Machinery Industry Science and Technology Award and

excellence award of the 9th Green Manufacturing Science and Technology Progress Award

Patented design!

A CC Single Cylinder Hydraulic Cone Crusher

An Impact Resistant One-way Throttle Valve

Good versatility!

The chamber can be changed by changing moving & fixed liners and the adapter ring.

The eccentricity can be adjusted by installing them on different keyways of eccentric copper sleeve.

7 kinds of chambers (EC-EF) and 3 sorts of eccentric copper sleeves are optional for various application conditions.
